Sun Nuclear offers a wide range of training phantoms for different imaging modalities and interventional techniques.

Vascular Access Training Phantom

  • Demonstrate and practice various insertion techniques
  • Teach ultrasound scan techniques
  • Experiment with new procedures and evaluate new devices

Female Ultrasound Training Pelvis

  • Facilitates teaching and demonstration of gynecological ultrasound techniques
  • Demonstrates 3D ultrasound capabilities

Scrotal Ultrasound Training Phantom

  • Teaching tool for diagnostic scanning of the testicles
  • Gain valuable practice time in a non-stressful setting

Lumbar Training Phantom

  • Realistic needle resistance of each tissue to allow the trainee to “feel” the injection site
  • Train many spinal procedures including sacroiliac joint injection, lumbar and caudal epidurals, diskography, block nerves, and facet blocks
  • Can be imaged under Fluoroscopy, CT, MR, and ultrasound

Thyroid Ultrasound Training Phantom

  • Train how to perform thyroid ultrasound examination
  • Practice ultrasound-guided biopsy procedures
  • Identify various types of thyroid nodules and training on proper thyroid scanning techniques

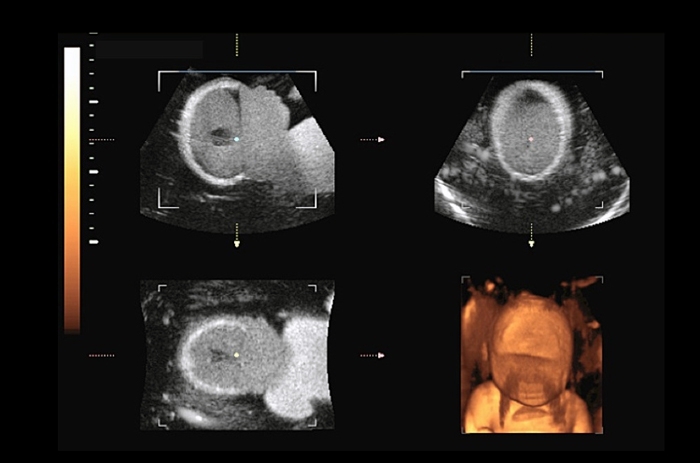

Fetal Ultrasound Biometrics Phantom

  • Demonstrate system capabilities
  • Teach imaging protocols to estimate gestational age
  • Practice 2D, 3D & 4D fetal scan techniques
  • Measure CRL, BPD, FL and AC

Fetal Ultrasound Training Phantom

  • Demonstrate system capabilities
  • Teach imaging protocols to estimate gestational age
  • Practice 2D, 3D & 4D fetal scan techniques

Endoscopic Ultrasound Training Phantom

  • Guide the flexible endoscope through a tissue-mimicking channel
  • Insert a biopsy needle into a target under ultrasound guidance
  • Identify simulated target structures

Elevate your training program

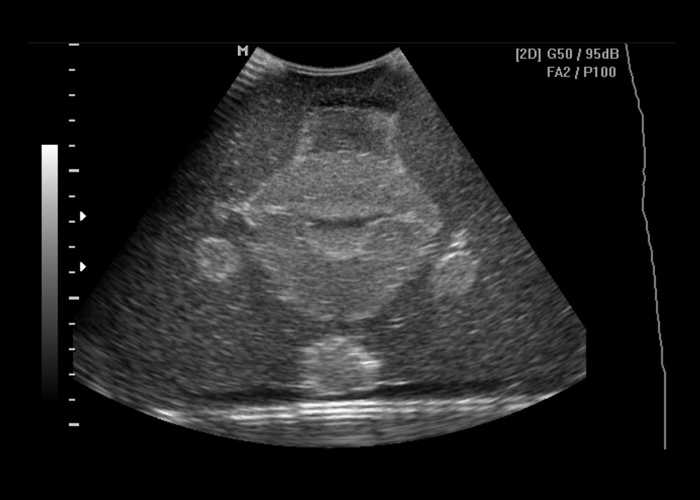

Female Ultrasound Training Phantom Transabdominal of Uterus

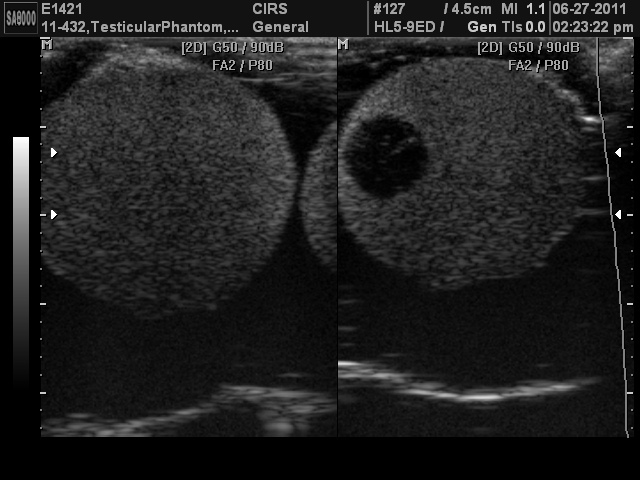

Scrotal Ultrasound Training Phantom Testicle with Intratesticular Mass

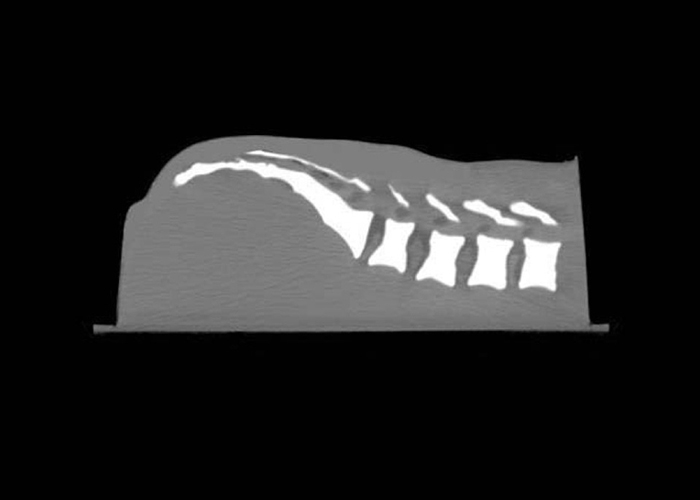

Lumbar Training Phantom Sagittal CT

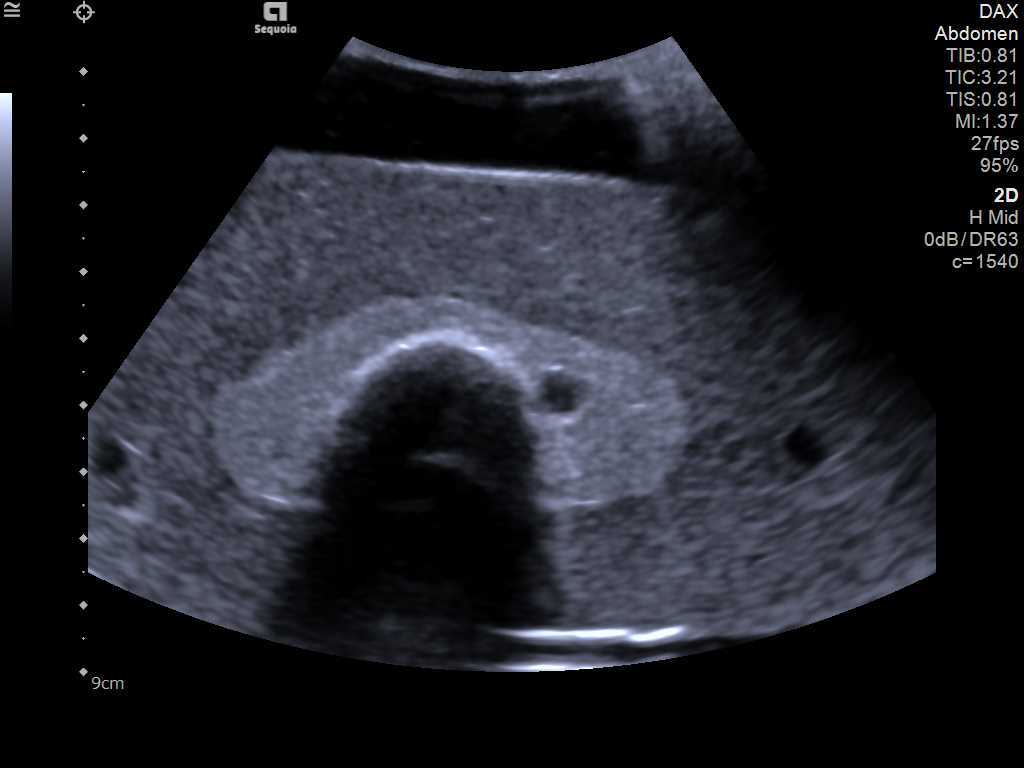

Thyroid Ultrasound Training Phantom Ultrasound image

Resources

Downloads

Downloads

Specifications

Vascular Access Training Phantom

Dimensions

100 mm x 175 mm x 30 mm

Weight

2 lbs (0.7 kg)
Female Ultrasound Training Pelvis

Dimensions

15 cm x 11 cm x 11 cm
(5.9" x 4.3" x 4.3")

Weight

2 kg (4.4 lbs.)

Materials

Z-SkinTM elastomer and Zerdine®

Internal Structure

Vaginal Canal
Cervix
Uterus with Endometrium, Myometrium, and Uterine Cavity
Fallopian Tubes
Homogeneous Left Ovary
Right Ovary containing follicles
Iliac Vessels
Scrotal Ultrasound Training Phantom

Dimensions

35 cm x 17 cm x 17 cm

Weight

1.2 kg (2.65 lb.)

Materials

Z-Skin™ elastomer, Zerdine®
Lumbar Training Phantom

Dimensions

38 cm x 25 cm x 18 cm
(15" x 10" x 7")

Weight

19 lbs. (7.1 kg)

Materials

Epoxy Resin (bony spinal structures) Urethane (soft spinal structures) Zerdine® (soft tissue)
Z-Skin™ (surface material)
Thyroid Ultrasound Training Phantom

Dimensions

31 cm x 32.5 cm (12.2" x 12.8")

Weight

9.4 lbs (3.5 kg)

Volume

35cc (nominal)

Materials

Outside: Z-SkinTM elastomer
Internal: Zerdine®

Internal Structure

Jugular Vein
Common Carotid Artery
Trachea with (2) cysts and (2) isoechoic, stiff lesions
Fetal Ultrasound Biometrics Phantom

Dimension

35 cm x 17 cm x 17 cm
(5.4" x 2.6" x 2.6")

Weight

8.9 kg (24 lbs.)

Targeted Biometric Dimensions

BPD: 4.2 cm (10th percentile)
APD: 5.8 cm Head
Circumference: 16 cm (16th percentile) Femoral Length: 3.8 cm
Abdominal Circumference: 17.5 cm
Crown-Rump Length: 22 cm

Materials

Housing: PVC, Vinyl & ABS
Phantom: Proprietary Gels
Fetal Ultrasound Training Phantom

Dimensions

41 cm x 23 cm x 23 cm
(16.1” x 9.1” x 9.1”)

Weight

15.8 kg (42 lbs.)

Housing Material

PVC, ABS & Vinyl

Phantom Material

Proprietary Gels

Background Gel

Attenuation: <0.10 dB/cm-MHz
Speed of Sound: 1550 m/s
Contrast: Anechoic

Fetal Soft Tissue

Attenuation: 0.55 dB/cm-MHz
Speed of Sound: 1540 m/s
Contrast: Similar to liver parenchyma

Field of View

20 cm x 30 cm x 180°C
More
Endoscopic Ultrasound Training Phantom

Dimensions

400 x 100 x 100 mm (15.75" x 4" x 4")

Weight

(5.9 Kg - 13 lbs)

Housing Materials

PVC

Scan Channel Diameter

25 mm - 1"

Echogenic & Anechoic Target Structures

Diameter: 10 & 20 mm
Target pattern: 360 degrees around the central scanning channel.
